THE ULTIMATE MULTI-TASKER

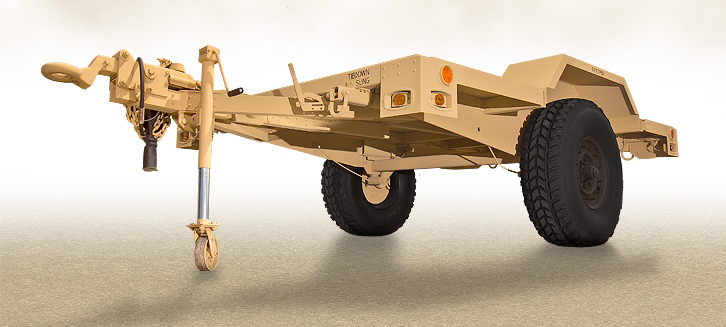

LTT FE - Flatdeck Extended
is an extended LTT Heavy Chassis trailer used to transport various tactical equipment where a greater cubic payload requirement is necessary. All specification are essentially identical to our standard LTT-FLATDECK model except we have added 34 inches to the deck length creating a total of 120 inches (almost 3 feet) greater deck capacity.
The LTT-FLATDECK EXTENDED is one of the most widely used platforms in service today due to its larger deck size, extreme durability, and exceptional adaptability to medium-duty applications. The frame and body are composed of aircraft aluminum alloy with a reinforced high strength steel drawbar making the LTT-Flatdeck EXTENDED incredibly robust and durable while maintaining minimal weight characteristics. Also standard are dual adjustable stabilizer legs, sling/tie-down points, and inertia actuated brakes.
5-ply thread, 2-ply sidewall
17 psi +- 2psi (117 kPa +- 13.8 kPa)
16.5 X 8.25 HMMWV standard 2-piece steel wheel
Frame and body are composed of aircraft aluminum alloy with reinforced high strength steel drawbar and sling/tie-down points.
SUSPENSION: Independent Rubber Torsion Axle
Independent Rubber Torsion Axle
12 x 2 inch inertia-actuated hydraulic surge brake system. Independent hand-brake levers for left and right side parking brakes.
All Aluminum Alloy Frame
Reinforced Steel Drawbar
Completely Covered Deck Platform Area
Sling Tie Down Points
Dual Adjustable Stabilizer Legs
24V DC Electrical System
Independent Rubber Torsion Axle System
Ineria-Actuated Hydraulic Surge Brake System
Hydraulic Double-Acting Shock Absorbers
Optional HMMWV Style Low Profile Rubber Run Flat InsertS
Upgradable and Customizable System Subsets
