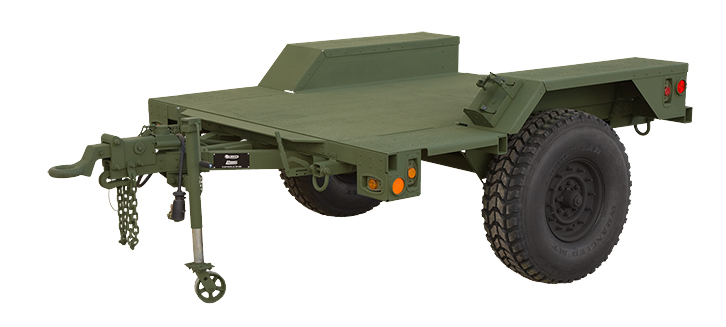

The LTT-FLATDECK can be configured for almost any application and a variety of load handling capacities to specifically match your requirement. Built upon the LTT-HC frame, LTT-Flatdeck is one of the most widely used platforms in service today due to its extreme durability and cargo handling abilities for medium-duty applications. The frame and body are composed of aircraft aluminum alloy with a reinforced high strength steel drawbar making the LTT-Flatdeck incredibly robust and durable while maintaining minimal weight characteristics. Also standard are dual adjustable stabilizer legs, sling/tie-down points, and inertia actuated brakes.
5-ply thread, 2-ply sidewall
17 psi +- 2psi (117 kPa +- 13.8 kPa)
16.5 X 8.25 HMMWV standard 2-piece steel wheel
Frame and body are composed of aircraft aluminum alloy with reinforced high strength steel drawbar and sling/tie-down points.
Independent Rubber Torsion Axle
12 x 2 inch inertia-actuated hydraulic surge brake system. Independent hand-brake levers for left and right side parking brakes.
All Aluminum Alloy Frame
Reinforced Steel Drawbar
Completely Covered Deck Platform Area
Sling Tie Down Points
Dual Adjustable Stabilizer Legs
24V DC Electrical System
Independent Rubber Torsion Axle System
Ineria-Actuated Hydraulic Surge Brake System
Hydraulic Double-Acting Shock Absorbers
Optional HMMWV Style Low Profile Rubber Run Flag Inserts
Upgradable and Customizable System Subsets
