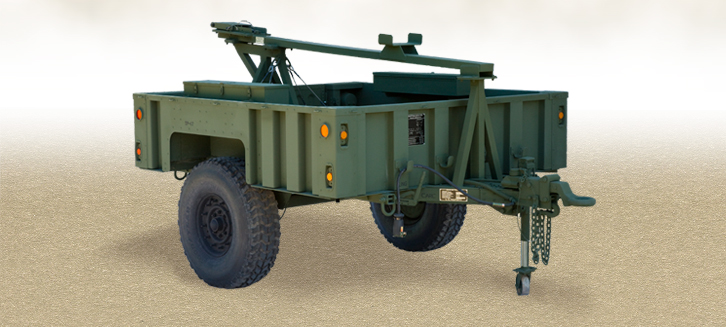

Schutt Industries designs all TACOM approved models as well as custom configurations upon request. The LTT-Cargo is designed to be highly compatible with HMMWV(High Mobility Multi-Purpose Wheeled Vehicle). The LTT-Cargo trailer comes in various payload capacities depending on the model.
The difference between the LTT-L and LTT-H is simply which primary mover is to be used with the trailer. All specifications are identical except the data plate reveals a difference in the trailers load capacity.
The LTT-Cargo Trailer represents generations of design evolution that have created a timeless architecture, which will serve our troops for generations to come. When only the very best will do, Schutt Industries LTT-Cargo is your first choice.
5-ply thread, 2-ply sidewall
17 psi +- 2psi (117 kPa +- 13.8 kPa)
16.5 X 8.25 HMMWV standard 2-piece steel wheel
Frame and body are composed of aircraft aluminum alloy with reinforced high strength steel drawbar and sling/tie-down points.
Independent Rubber Torsion Axle
12 x 2 inch inertia-actuated hydraulic surge brake system. Independent hand-brake levers for left and right side parking brakes.
All Aluminum Alloy Frame
Reinforced Steel Drawbar
Completely Covered Deck Platform Area
Sling Tie Down Points
Dual Adjustable Stabilizer Legs
24V DC Electrical System
Independent Rubber Torsion Axle System
Ineria-Actuated Hydraulic Surge Brake System
Hydraulic Double-Acting Shock Absorbers
Optional HMMWV Style Low Profile Rubber Run Flag Inserts
Upgradable and Customizable System Subsets
